Protable Waterspout Downpipe Roll Forming Machine , Sheet Metal Forming Equipment

    Buy cheap Protable Waterspout Downpipe Roll Forming Machine , Sheet Metal Forming Equipment from wholesalers

    Buy cheap Protable Waterspout Downpipe Roll Forming Machine , Sheet Metal Forming Equipment from wholesalers
    • Buy cheap Protable Waterspout Downpipe Roll Forming Machine , Sheet Metal Forming Equipment from wholesalers

    Protable Waterspout Downpipe Roll Forming Machine , Sheet Metal Forming Equipment

    Ask Lasest Price
    Brand Name : bluesteel
    Model Number : bl
    Certification : ce
    Price : negotiable
    Payment Terms : T/T or L/C
    Supply Ability : 50sets /month
    Delivery Time : 45days
    • Product Details
    • Company Profile

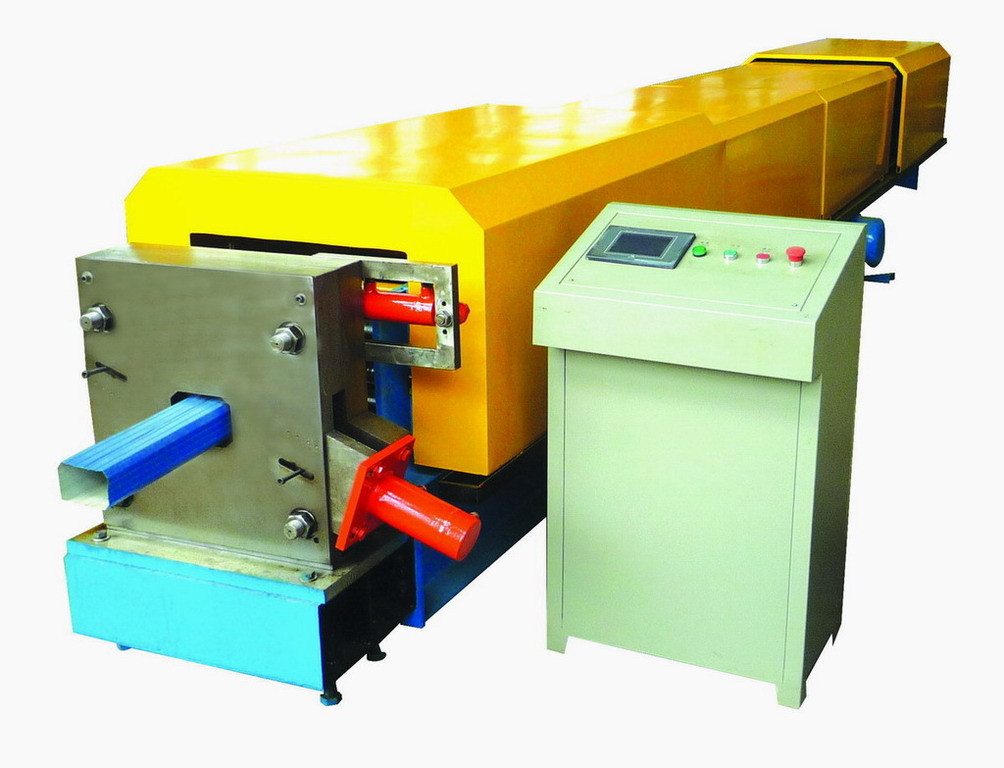

    Protable Waterspout Downpipe Roll Forming Machine , Sheet Metal Forming Equipment

    Protable Rainwater Downpipe Roll Forming Machine, Round Downpipe Forming Equipment


    Technical data of downpipe roll forming machine

    Suitable material

    color steel sheet;0.7-1.0mm,1.5mm, 2mm

    Working speed

    about8-25m/min

    stress

    235MPa,345MPa,550MPa.

    Power

    Main motor power: 12 Kw(Depend on final design)

    Hydraulic station power: 3Kw(Depend on final design)

    Material of forming rollers

    No.45 steel, plated with chrome on surface.

    Material of cutter,pressing die

    Cr12 mould steel with quench treatment, HRC58-60

    Material of shaft

    High quality 45# steel, Roller grinder milling.

    Shaft diameter

    72mm

    Controlling system

    Mitsubishi PLC & converter

    Total weight of machine

    About 9500KGS

    Machine’s size

    about 18m×1.8m× 1.5m (Depend on final design)


    Layout drawing of machine



    producing process:

    Protable Waterspout Downpipe Roll Forming Machine , Sheet Metal Forming Equipment


    We can customize the products according to customer ' s requirements

    Protable Waterspout Downpipe Roll Forming Machine , Sheet Metal Forming Equipment


    Protable Waterspout Downpipe Roll Forming Machine , Sheet Metal Forming EquipmentProtable Waterspout Downpipe Roll Forming Machine , Sheet Metal Forming Equipment


    WHY CHOOSE US

    1) Q: Do you have after sales support?

    A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.

    2)Q: How do your machines compare with other big companies in this market?

    A: We are up to date with the latest technology and improve our machines accordingly

    3) Q: Will you deliver the right goods as ordered? How can I trust you?

    A: Yes, we will. The core of our company culture is honesty and credit.


    4) Q:Can you be responsible for transport?

    A:Yes,please tell me the destination port or address.we have rich experience in transport.

    5) Q:Can you supply the raw materials?

    A:Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.
